Sandy Creek

Cover Sheet – May include index, front view of home, definitions, etc.

Foundation Plan – Typically includes dimensioned foundation plan with footing details.

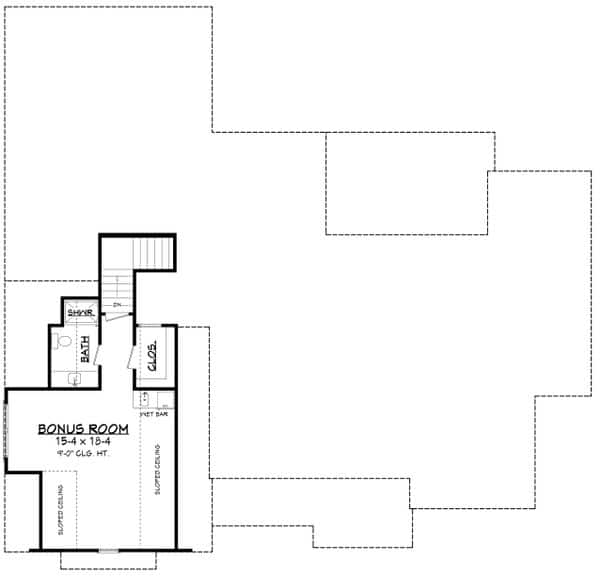

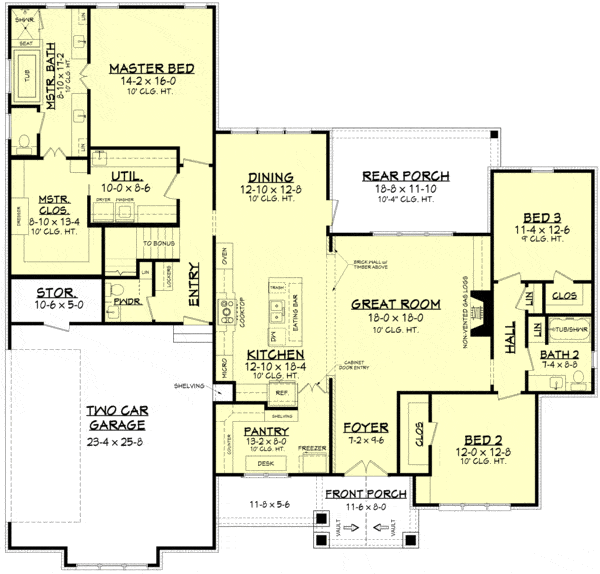

Dimensioned Floor Plan – Electrical may be shown.

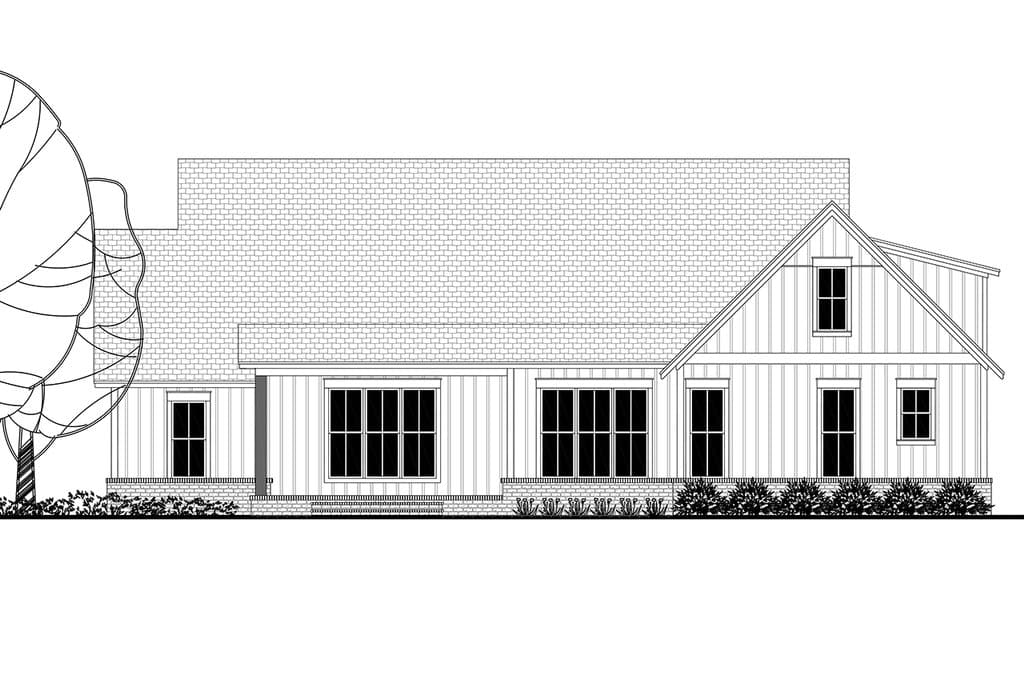

Exterior Views – Four exterior views of the residence with other miscellaneous details.

Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.

Electrical Plan – Displays all switches, lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan.

Wall Section(s) – Detail of wall materials and assembly.

Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.

Cabinet Elevations – Displays interior kitchen cabinet views.

*Note: If adding a material list to your order, foundation materials will not be included due to site specific conditions.
