Grape Creek

3754 SQFT • 3 Beds • 2.5 Baths

KEY SPECS

3754

SQFT

3

Beds

2.5

Baths

2

Garage

0

Car Port

N/A

Optional Bonus

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing.

PLAN DESCRIPTION

This modern Farmhouse style floor plan was inspired by the simple, functional concept and form of the barn. It’s designed for indoor-outdoor living, and entertaining all year round. The home features 3 bedrooms, 2.5 baths, a study, large loft, and a wrap-around lanai. It’s filled with many unique features that you’ll enjoy in your everyday life — window seat, stair tower, lots of storage, a covered breezeway, a bathroom skylight, walk-in closets, double vanities, double pantries, kitchen island / bar, built-in entry bench, large mud room and other built-ins. The simply elegant design, combined with the many features throughout, makes this house a place you’ll want to call home.

Ready to Get Started?

Floor Plan

Overview

FULL SPECS & FEATURES

DIMENSION

Depth : 56′

Height : 27′

Width : 107′

AREA

First Floor: 3178 sq/ft height 10′

Garage: 676 sq/ft

Porch: 1112 sq/ft

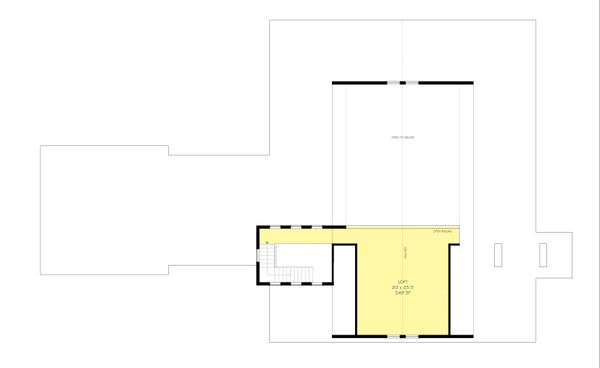

Second Floor: 576 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

CEILING

Ceiling Details : Vaulted Ceiling at Bonus Floor

Main Ceiling : 10′

ROOF

Metal

EXTERIOR WALL FRAMING

Exterior Wall Finish : Siding

Framing : 2×6

Insulation : R31

BEDROOM FEATURES

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

KITCHEN FEATURES

Breakfast Nook

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

ADDITIONAL ROOM FEATURES

Den Office Study Computer

Great Room Living Room

Main Floor Laundry

GARAGE FEATURES

Detached Garage

Side Entry Garage

LOT CHARACTERISTICS

Suited For Corner Lot

Suited For View Lot

OUTDOOR SPACES

Breezeway

Covered Front Porch

Covered Rear Porch

Ready to Get Started?

WHAT'S INCLUDED IN THIS PLAN SET

COVER PAGE: Cover Sheet: Showing architectural rendering of residence

FOUNDATION PLAN: Drawn to 1/4″ scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

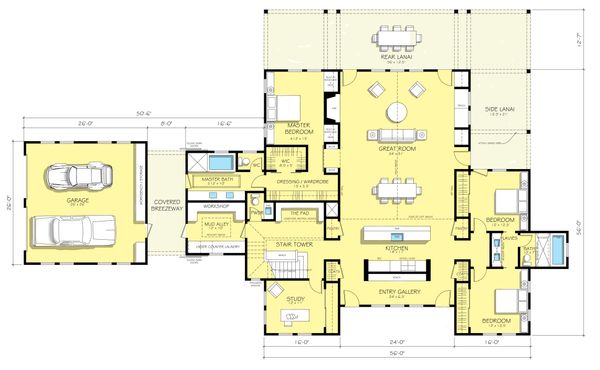

FLOOR PLAN: Detailed plans, drawn to 1/4″ scale for each level showing room dimensions, wall partitions, windows, etc.

ROOF PLAN: An overhead “birds-eye” view of the roof, describing roof slope

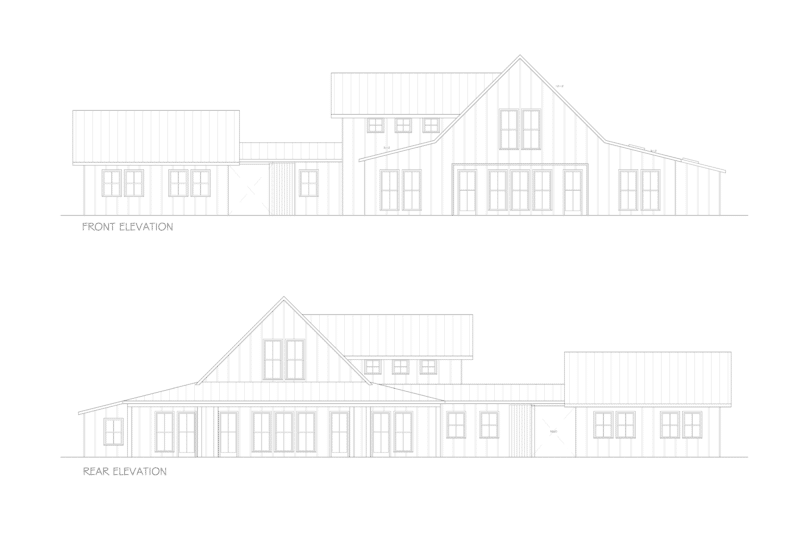

ELEVATIONS: A blueprint picture of all four sides showing exterior materials and measurements.

SECTIONS: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

ELECTRICAL PLAN: Shows the locations of lights, receptacles, switches, etc.

TYPICAL WALL SECTION & DETAILS

Questions? Call 1-888-447-1946

Plan Set

$1215.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

$1370.00

5 printed plan sets mailed to you.

$1825.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

$915.00

One electronic set for bidding purposes only. Not a legal building set for construction.
